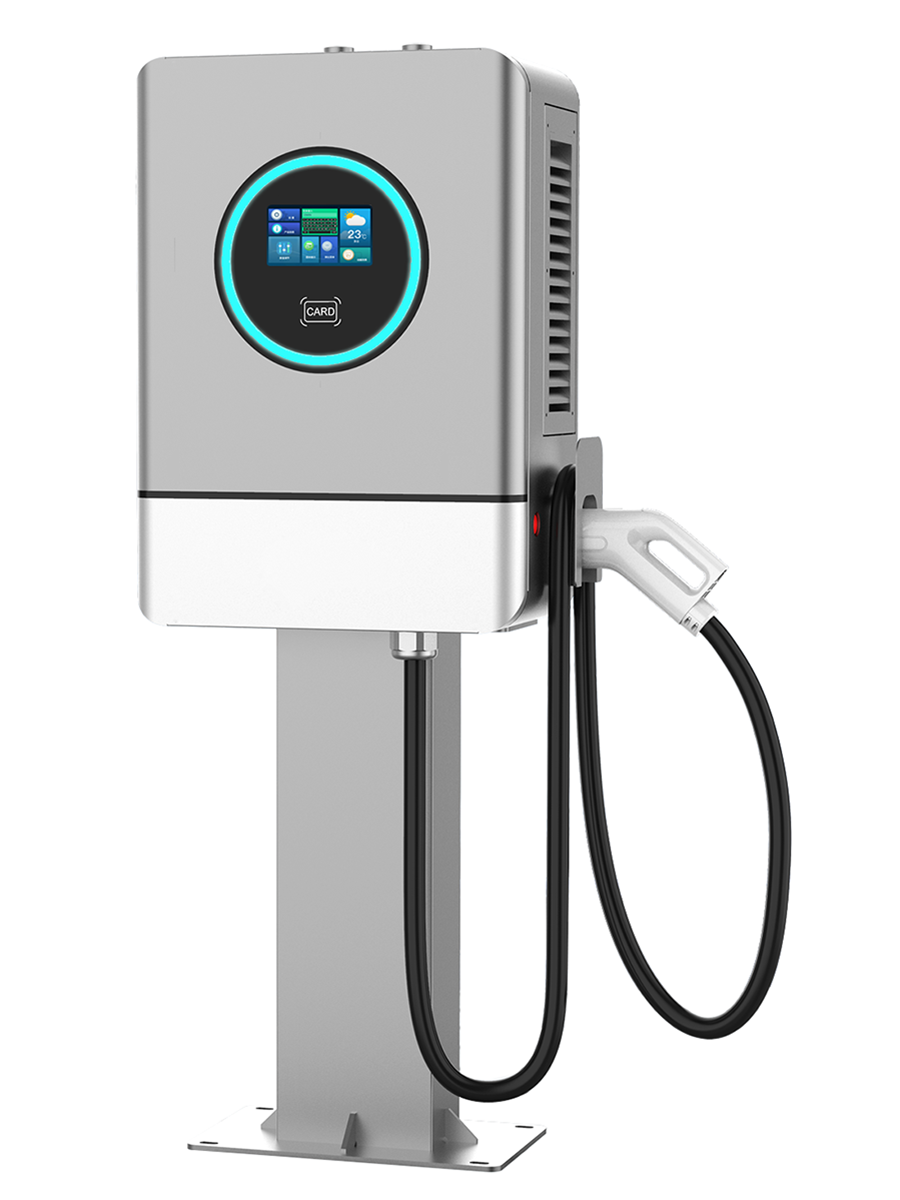

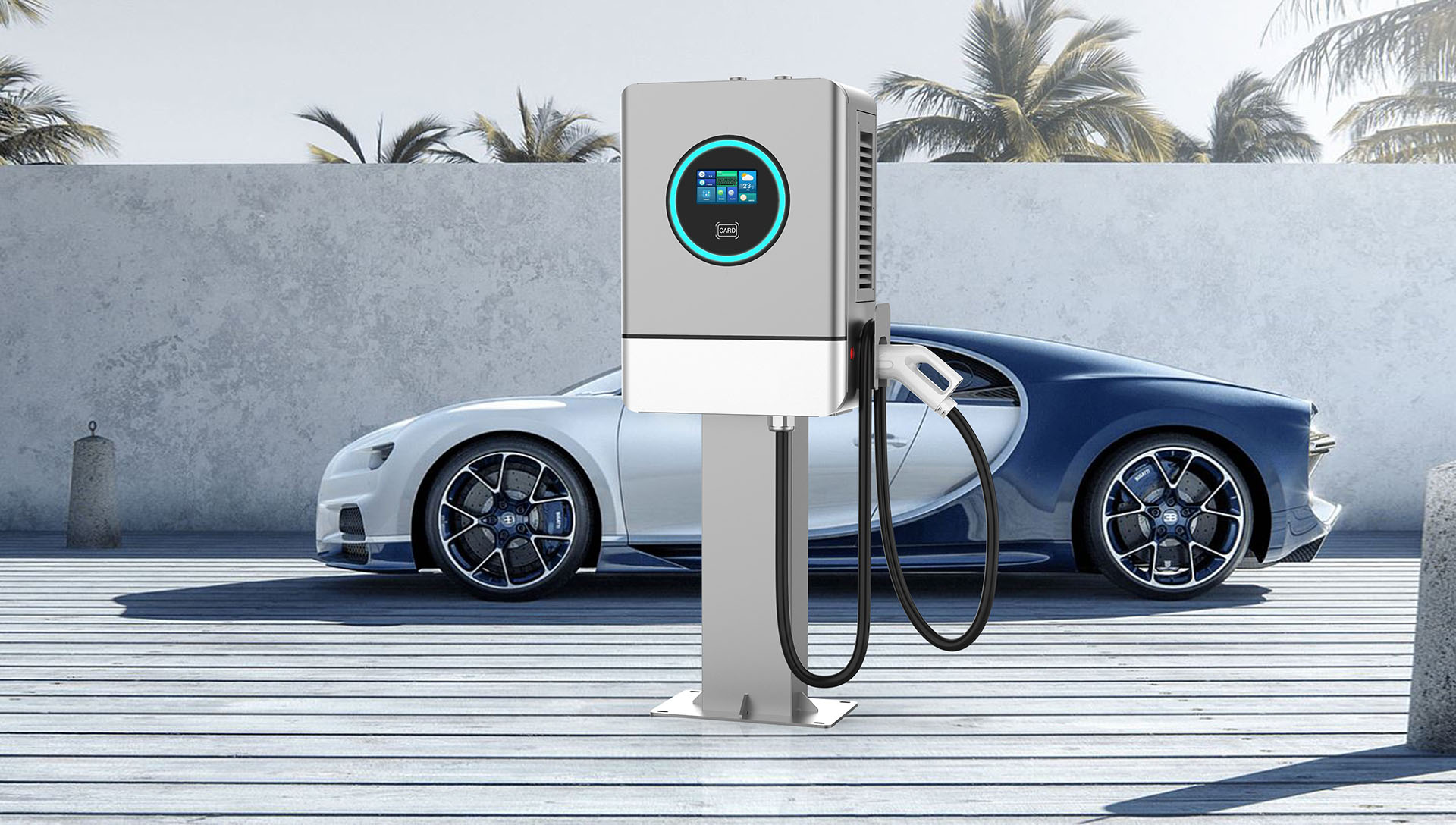

EU DC EV Charging Station 30kW Single Port Commercial
Description
Introducing our state-of-the-art 30kW DC fast charging station, designed to revolutionize the way electric vehicles are powered. The charging station has a stylish and modern design and is equipped with a 7-inch LCD touch screen for easy operation.
One of the main features of our DC fast charging stations is that they are environmentally friendly. It is designed to minimize your carbon footprint and promote sustainable energy use, making it ideal for eco-conscious businesses and communities.
The modular design of the charging station makes expansion and maintenance very convenient. This means that as demand for electric vehicle charging grows, our charging stations can be easily expanded to meet those needs without the need for a complete overhaul of the infrastructure.
In terms of durability and reliability, our charging stations have an IP rating of IP54, ensuring dust and water resistance. This makes it suitable for both indoor and outdoor installations, providing flexibility for a variety of charging station locations.
Connectivity is another highlight of our products, with OCPP1.6J compatibility and seamless integration with various network management systems. This ensures that charging stations can be easily monitored and managed remotely, providing convenience to operators and users.
In addition, our DC fast charging stations are CE certified and meet the highest safety and quality standards. This certification gives users and operators peace of mind knowing that the products they use have been rigorously tested and meet all necessary regulatory requirements.
All in all, our 30kW DC fast charging station is a cutting-edge solution for electric vehicle charging, perfectly blending advanced technology, environmental sustainability and user-friendly design. Whether for commercial or public use, charging stations will have a significant impact on the transition to a cleaner, more sustainable transportation ecosystem.
Parameter Information
Power supply | 3P+N+PE | Rated voltage | 480Vac±10% | |
Frequency | 50/60Hz | Output voltage | 200-1000 V DC | |
Rated power | 30kW | Max output current | 80A | |
Charge connector | CCS2 | Cable length | 16.4FT(5m) | |
Display screen | 7 inch LCD touch screen | Language | English/Chinese | |
LED indicator | Green/Red | RFID reader | Mifare ISO/IEC 14443 A | |
Emergency stop | Yes | Network interface | Ethernet;Wi-Fi,4G(optional) | |
Communication Protocols | OCPP1.6J | Voltage stabilized accuracy | <±0.5% | |
Protection level | IP54 (not including the screen) | |||
Standards | EN IEC61851-1:2019,EN61851-23:2014,EN61851-24:2014, OCPP1.6J compliance | |||
Start mode | Local start: Plug & charge /RFID | Network start: OCPP/ APP | ||
Certification | CE compliance | |||
Electrical protection | Overcurrent protection, Short circuit protection, Input/ Output Overvoltage protection,In put Undervoltage protection,Insulation monitoring,Over temperature protection, etc. | |||
THDI | ≤5% | Power factor | >0.99 | |
Efficiency | ≥94%(Peak) | Work humidity | 0~95RH%; No condensation | |
Work altitude | ≤2000m | Work temperature | -22°F to 122°F (-30°C to 50°C ) | |
Cooling Method | Forced air cooling | Installation | Pedestal/Wall-mounted | |
Net weight | 60KG | External package | Wooden case | |
Product dimension | Without pedestal:27.6in × 17.7in × 9.3in (700mm × 450mm × 235mm) |
Features
7 inch LCD touch screen
Fast Charge
Environmental Friendly
Modularized design, convenient to expand and maintain
Application
Commercial Area
Residential Area
