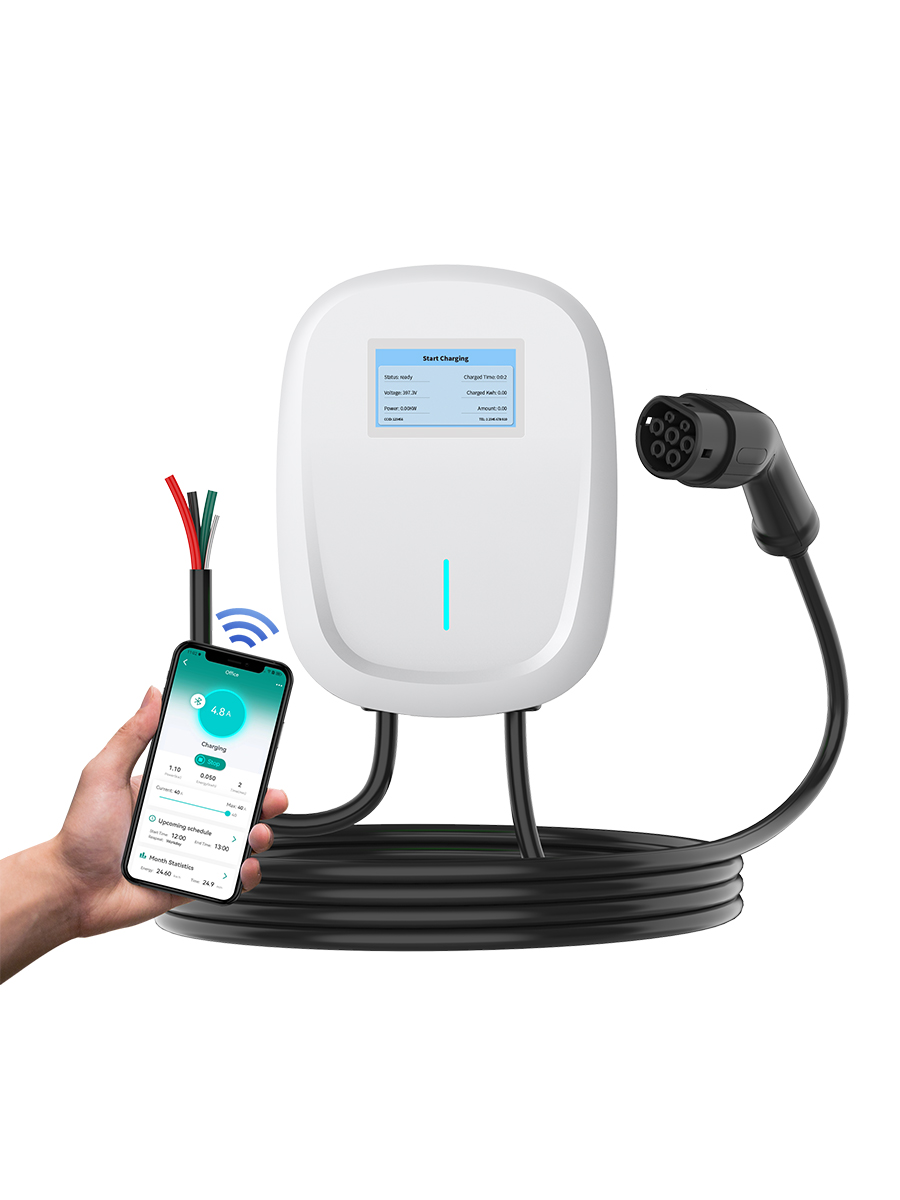

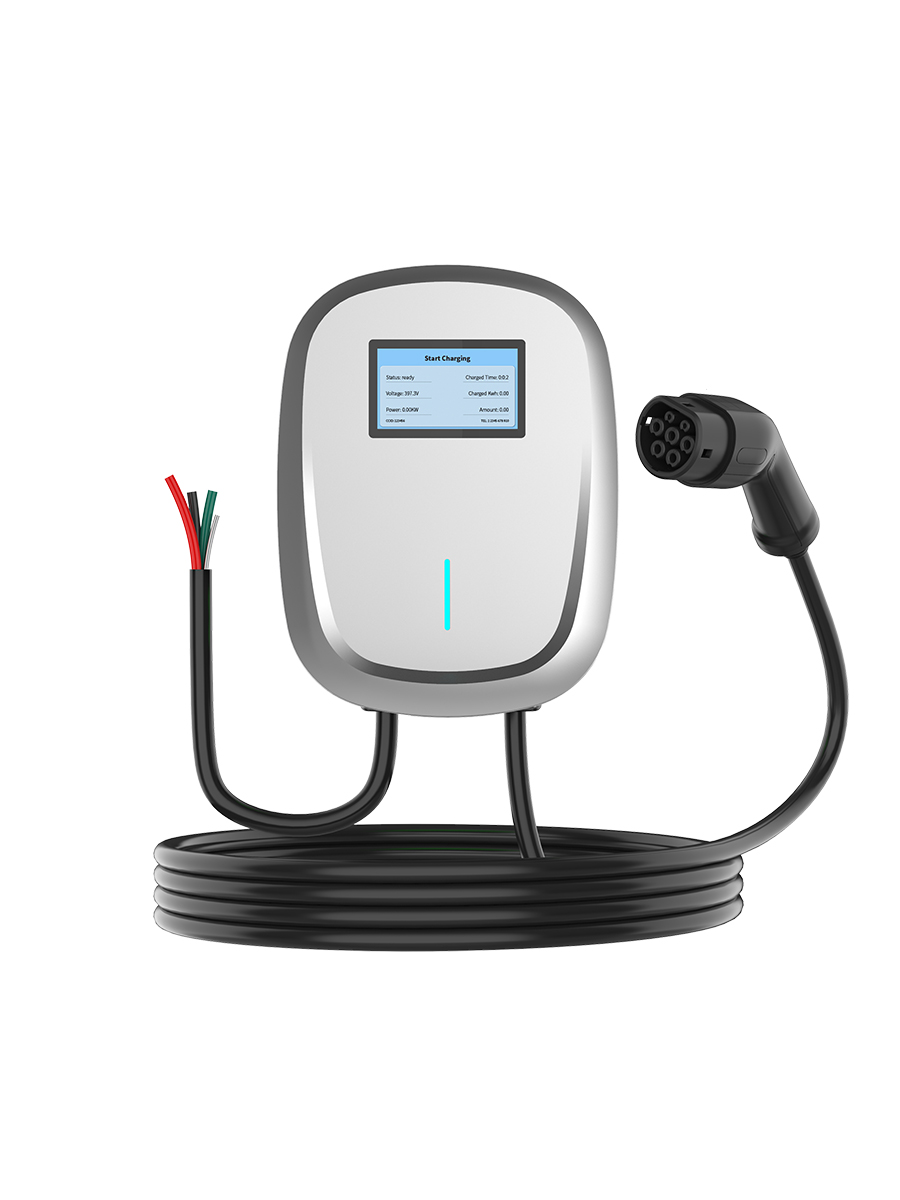

EU G1 AC EV Charging Station Home CE Listed
The home charging station complies with the European standard and features a 4.3" LCD display as well as OTA remote firmware updates.
With Bluetooth, WiFi and APP compatibility, users can conveniently manage and monitor the charging process through smartphones or other smart devices.
- Input Voltage: Single phase: 230VAC 50-60Hz
- Input Voltage: Three phase: 3×230VAC 50-60Hz
- Output Rating: Single phase: 16A/3.7kW, 32A/7.4kW
- Output Rating: Three Phase: 16A/11kW, 32A/22kW
- Certification: CE,UKCA,SAA Listed
- LCD Display: 4.3" screen
Description
Introducing our state-of-the-art home charging station, designed to meet the growing demand for efficient and convenient electric vehicle charging in residential areas. This cutting-edge charging solution is fully compliant with European standards, ensuring safety and reliability for all users.
Equipped with a 4.3-inch LCD display, our home charging station provides a user-friendly interface to easily monitor and control the charging process. Additionally, it offers OTA (over-the-air) remote firmware updates, ensuring the charging station is always up to date with the latest features and enhancements.
One of the standout features of our home charging stations is their advanced connectivity options. With Bluetooth, WiFi and APP compatibility, users can conveniently manage and monitor the charging process through smartphones or other smart devices. This seamless integration with modern technology makes the charging experience more intuitive and user-friendly.
Home charging stations are designed for residential areas to meet the needs of homeowners transitioning to electric vehicles. Its sleek and compact design makes it ideal for residential garages or driveways, providing electric vehicle owners with a convenient and reliable charging solution.
In addition to advanced features, our home charging stations focus on energy efficiency and sustainability. It is designed to optimize energy consumption and minimize environmental impact, in line with the principles of environmentally friendly living and sustainable transportation.
With our home charging stations, homeowners can embrace the future of mobility with confidence knowing they have a reliable, efficient charging solution at their fingertips. Whether it’s your daily commute or a weekend getaway, our home charging stations are the perfect companion for electric vehicle owners, providing a seamless, worry-free charging experience.
Parameter Information
| Electrical Characteristics | 16A Max | 32A Max | 16A Max | 32A Max |
| Single phase input: 230VAC 50-60 Hz | Three phase input :3x230VAC 50-60Hz | |||
| 3.7kW at 230 VAC | 7.4kW at 230 VAC | 11kW at 3x230VAC | 22kW at 3x 230VAC | |
| Input Cord |
Hardwired |
|||
| Output Cable & Connector | 16.4FT/5.0m cable (26.2FT/8.0m optional) | |||
| IEC62196-2 standard compliance | ||||
| Environmental Parameter | Protection Class IP65: Weatherproof,dust-tight | |||
| IK08:Resistant polycarbonate case | ||||
| Operating Temperature: -22°F to 122°F (-30°C to 50°C ) | ||||
| Dimensions | Main enclosure:9.7in x12.8in x 3.8in (247mm x326m x 97mm) | |||
| Standards | IEC61851-1 ,IEC61851-21-2 compliance | |||
| Certification | CE,UKCA,SAA Listed | |||
| Optional | RFID,Socket,Color customization | |||
| Warranty | 2 years limited product warranty | |||
Features
OTA Remote Firmware Updates
4.3 "LCD display
Application
Residential Area
