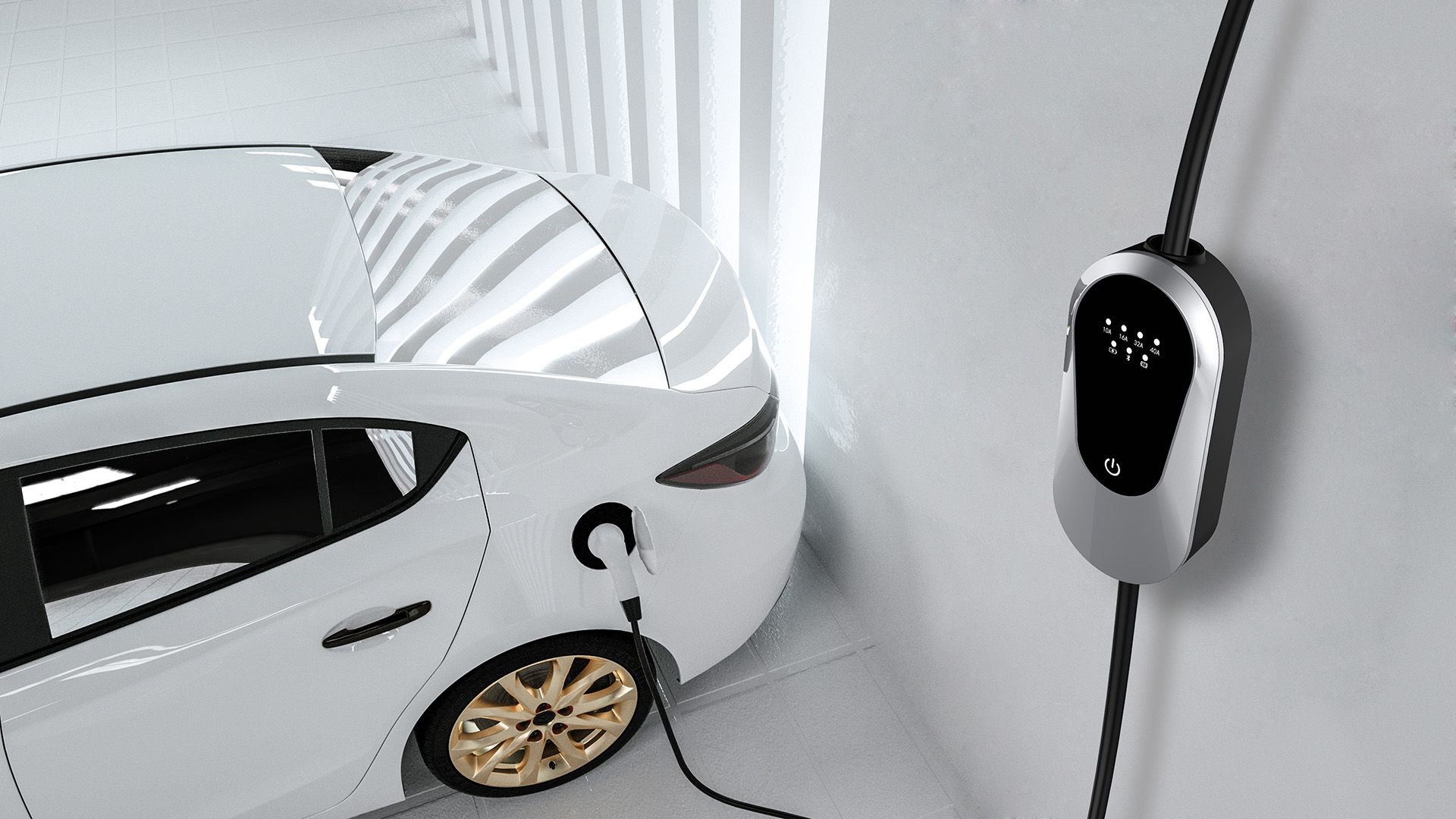

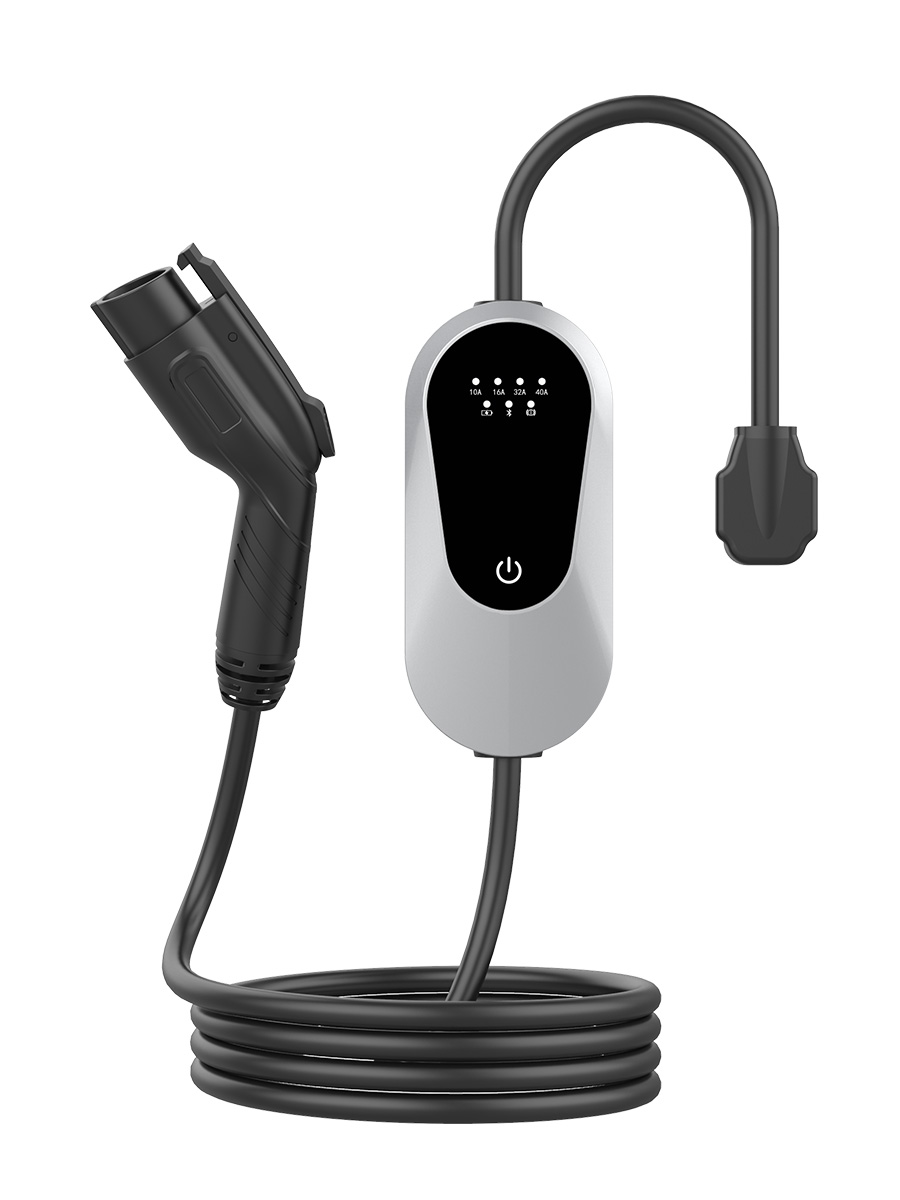

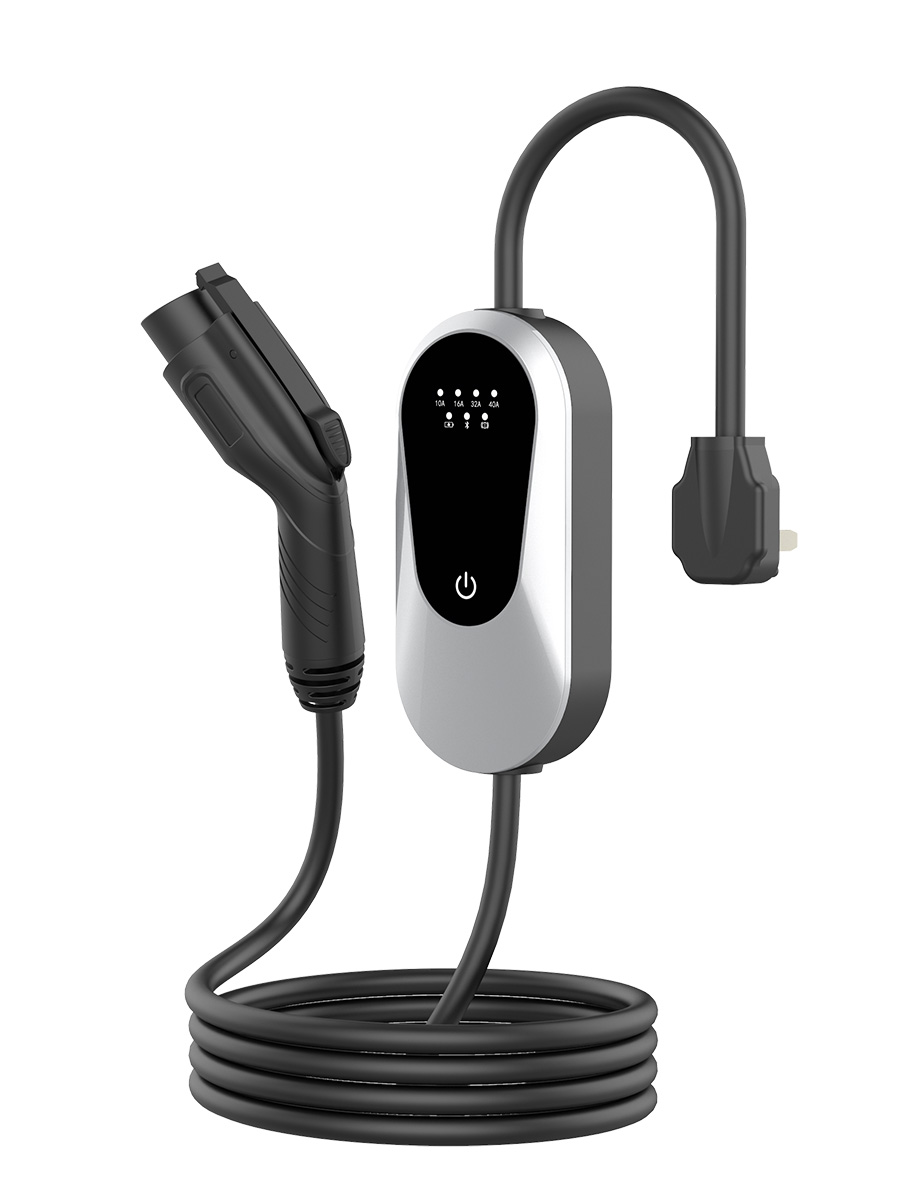

NA Level 2 Portable EV Charging Station Home
The Portable EV Charger is designed to provide a cost-effective and environmentally friendly solution for all your electric vehicle charging needs. With its compact size and fast charging capabilities, the Portable EV Charger is the perfect choice for both residential and commercial use.
- Input Voltage: Single phase: 208-240VAC ~60Hz
- Output Rating: 10A/2.4kW, 16A/3.8kW, 32A/7.6kW, 40A/9.6kW
- Certification: FCC Compliance
- Charging Interface: SAE J1772, Type1 Plug
Description
Introducing our latest innovation in electric vehicle charging technology - the Portable EV Charger. This cutting-edge product is designed to provide a cost-effective and environmentally friendly solution for all your electric vehicle charging needs. With its compact size and fast charging capabilities, the Portable EV Charger is the perfect choice for residential use.
One of the key features of the Portable EV Charger is its compact size, which makes it easy to store and transport. Whether you need to charge your electric vehicle at home, at work, or on the go, this charger is designed to be conveniently portable and space-saving. Its sleek and modern design also ensures that it will complement any environment, whether it’s a home garage or a public charging station.
In addition to its compact size, the Portable EV Charger is also equipped with fast charging capabilities, utilizing the standard J1772 charging protocol. This means that you can charge your electric vehicle quickly and efficiently, without having to wait for hours on end. This makes it an ideal choice for busy individuals who are always on the move and need a reliable and fast charging solution.
Furthermore, the Portable EV Charger is designed with environmental sustainability in mind. By using this charger, you can reduce your carbon footprint and contribute to a cleaner and greener future. Its energy-efficient design ensures that you can charge your electric vehicle without putting a strain on the environment.
Overall, the Portable EV Charger is a game-changer in the world of electric vehicle charging. Its cost-effective, environmentally friendly, and compact design, combined with its fast charging capabilities, make it a must-have for anyone who owns an electric vehicle. Say goodbye to long charging times and bulky chargers - with the Portable EV Charger, you can enjoy a seamless and efficient charging experience wherever you go.
Parameter Information
| Electrical Parameter | 10A Max | 16A Max | 32A Max | 40A Max |
| 2.4kW at 240 VAC | 3.8kW at 240 VAC | 7.6kW at 240 VAC | 9.6kW at 240 VAC | |
| Single phase input: nominal voltage 208-240 VAC 60 Hz | ||||
| Input Cord | 0.98 FT / 300mm NEMA 5-15P | |||
| 0.98 FT / 300mm NEMA 6-50P | ||||
| 0.98 FT / 300mm NEMA 14-50P | ||||
| Output Cable & Connector | 18 FT / 5.5m cable (25 FT / 7.5m optional) | |||
| SAE J1772 Compliant, Type 1 Plug | ||||
| Smart Grid Connectivity (Optional) | Built-in WIFI / Bluetooth Connectivity, compatible with Tuya platform | |||
| Environmental Parameter | Enclosure NEMA Type 3, EV Charger NEMA Type 3R | |||
| Free-installation（charge with the car） | ||||
| Operating Temperature: -22°F to 122°F (-30°C to 50°C ) | ||||
| Dimension | Main enclosure: 9.7 in × 4.6 in × 2.6 in ( 247 mm × 118 mm × 66 mm) | |||
| Codes & Standards | UL991, UL2251 | |||
| Safety | Meet the requirements of FCC standards | |||
| Warranty | 1 year limited product warranty | |||
Features
Cost Effective Solution
Environmental Friendly
Compact Size for Easy Storage
Fast Charging–Utilizing the Standard J1772 Charging Protocol
Application
Residential Area
